Product Overview

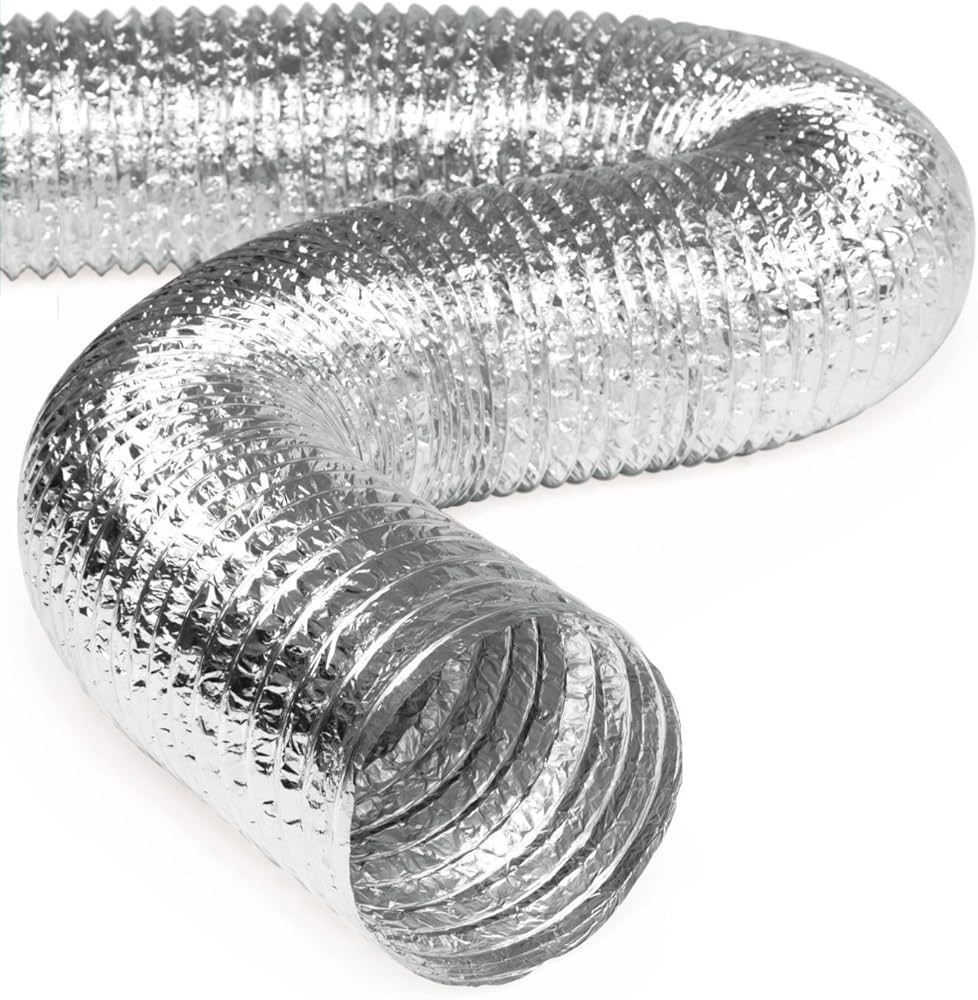

The MKFlex Uninsulated Flexible Duct is extremely strong, with metallized polyester film/aluminium foil permanently bonded to a corrosion resistant spring steel wire helix. It is highly suitable for use for all pressure heating and cooling systems. It is a superior alternative for applications where insulated duct is either not required or cannot be used, e.g., clean room applications.
This Class 1 Air Duct is constructed of two layers of metallized polyester film encapsulated with steel helix spring wire.
-
Durability & Reliability
- Tri-directional reinforcement technology
- Industry-leading durability in the segment
- Long-lasting performance in harsh conditions
Performance Data
- Temperature Range: -26°C to 60°C
- Maximum Velocity: 5000 FPM
- Recommended Operating Pressure:
- 4" to 12" Diameter:
- Static Pressure – positive: 6" W.G.
- Static Pressure – negative: 0.8" W.G.
- 14" to 20" Diameter:
- Static Pressure – positive: 4" W.G.
- Static Pressure – negative: 0.8" W.G.
- Standard Length: 25'
Advantages
- Supplied in standard 25 feet length in a small Box
- Low costs on transport and logistic
- Easy to Install
- No special tool required for cutting or fixing
- In case of a fire, no toxic gases are emitted
Applications
- Commercial HVAC systems
- Residential air conditioning
- Industrial ventilation
- Clean room environments
- Pharmaceutical facilities
- Data centers
- Hospital and healthcare facilities
- Educational institutions
- Retail spaces
Physical Characteristics
- Standard I.D. Diameters: 4,6,8,10,12,14,16,18,20 inches
- Standard Lengths: 2.5 feet
